Database Change Management with Spanner and GitHub

A series of articles about Database Change Management with Spanner, and is also applicable to Spanner Serverless.

Database Change Management with Spanner
Database Change Management with Spanner and GitHub (this one)

In the last article Database Change Management with Spanner, you have tried UI workflow in Bytebase.

This tutorial will bring your Spanner schema change to the next level by introducing the GitOps workflow, where you commit the schema change script to the GitHub repository, which will in turn trigger the schema deployment pipeline in Bytebase.

You can use Bytebase free version to finish the tutorial.

Features included

GitOps Workflow

Prerequisites

Before you start this tutorial, make sure you have the following ready:

Followed our previous UI-based change tutorial Database Change Management with Spanner.
A Cloud Spanner instance.
A GitHub account.
A public GitHub repository, e.g bb-test-gitops-spanner.
Docker installed locally.
An ngrok account.

Step 1 - Run Bytebase in Docker and set the External URL generated by ngrok

ngrok is a reverse proxy tunnel, and in our case, we need it for a public network address in order to receive webhooks from VCS. ngrok we used here is for demonstration purposes. For production use, we recommend using Caddy.

ngrok-reverse-proxy

Run Bytebase in Docker with the following command:

docker run --rm --init \
  --name bytebase \
  --publish 8080:8080 --pull always \
  --volume ~/.bytebase/data:/var/opt/bytebase \
  bytebase/bytebase:2.15.0

Bytebase is running successfully in Docker, and you can visit it via localhost:8080. Register an admin account and it will be granted the workspace admin role automatically.
Login to ngrok Dashboard and complete the Getting Started steps to install and configure. If you want to use the same domain each time you launch ngrok, go to Cloud Edge > Domains, where you'll find the domain <<YOURS>>.ngrok-free.app linked to your account.
Run the ngrok command ngrok http --domain=<<YOURS>>.ngrok-free.app 8080 to start ngrok with your specific domain, and you will see the output displayed below:
Log in Bytebase and click the gear icon (Settings) on the top right. Click General under Workspace. Paste <<YOURS>>.ngrok-free.app as External URL under Network section and click Update.
Now you can access Bytebase via <<YOURS>>.ngrok-free.app.

Step 2 - Find your Spanner in Bytebase

Visit Bytebase Console through the browser via your ngrok URL. Log in using your account created from the previous tutorial.
If you followed the previous tutorial, you should see that the project and database created are still in your workspace.

Step 3 - Connect Bytebase with GitHub.com

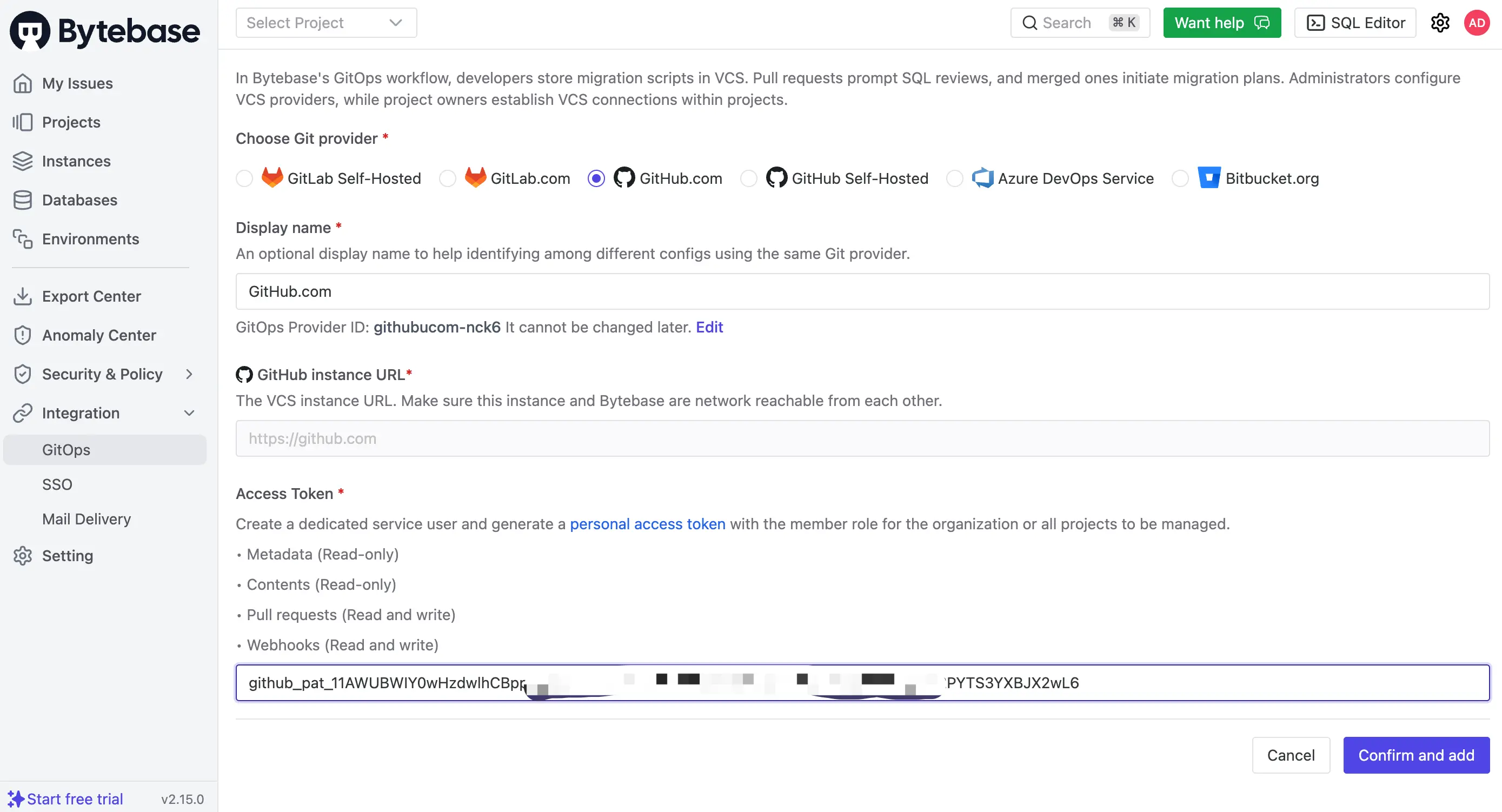

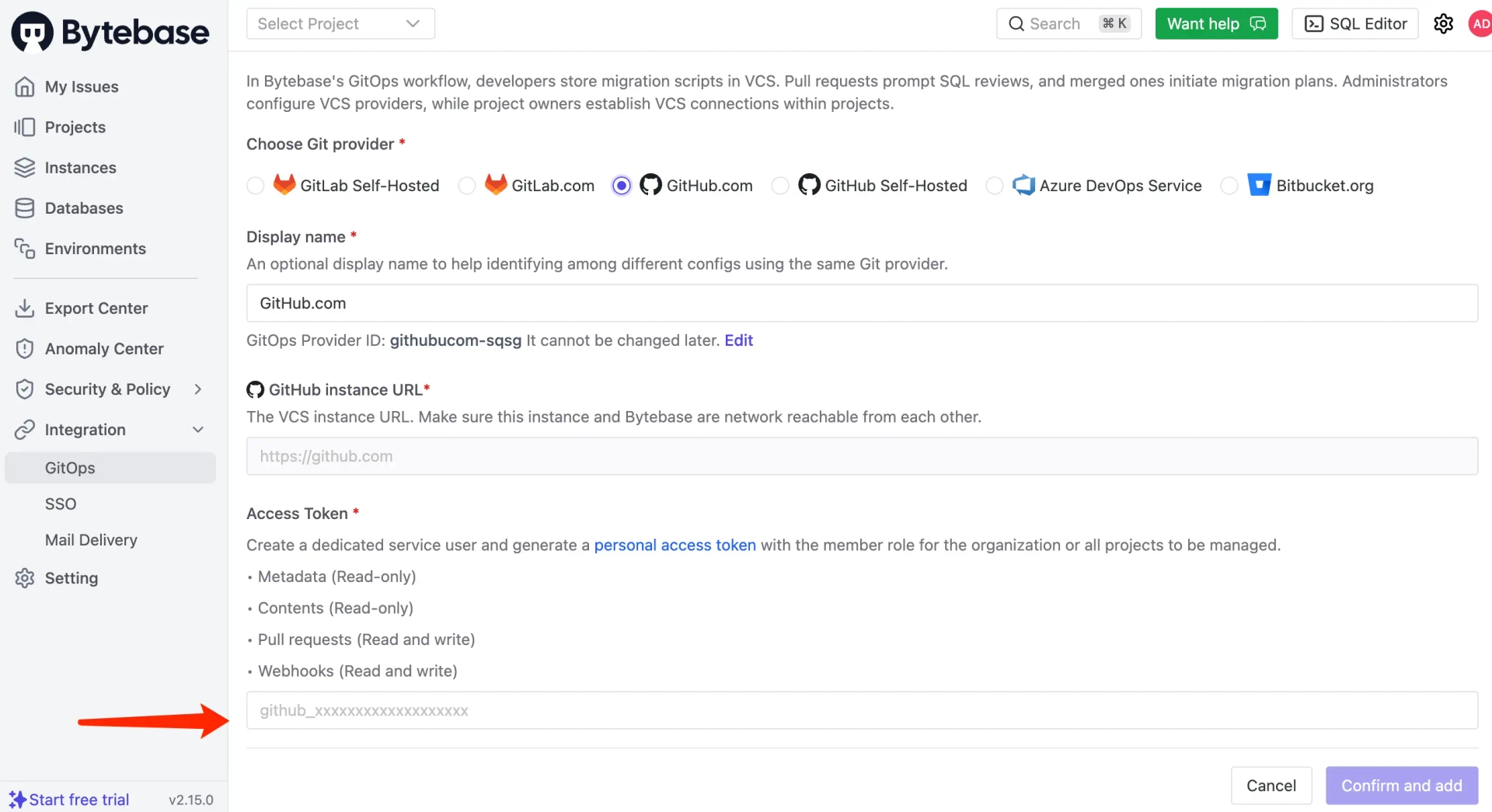

Click Settings on the top bar, and then click Workspace > GitOps. Choose GitHub.com and click Next.
Follow the instructions within STEP 2, and in this tutorial, we will use a personal account instead of an organization account. The configuration is similar.

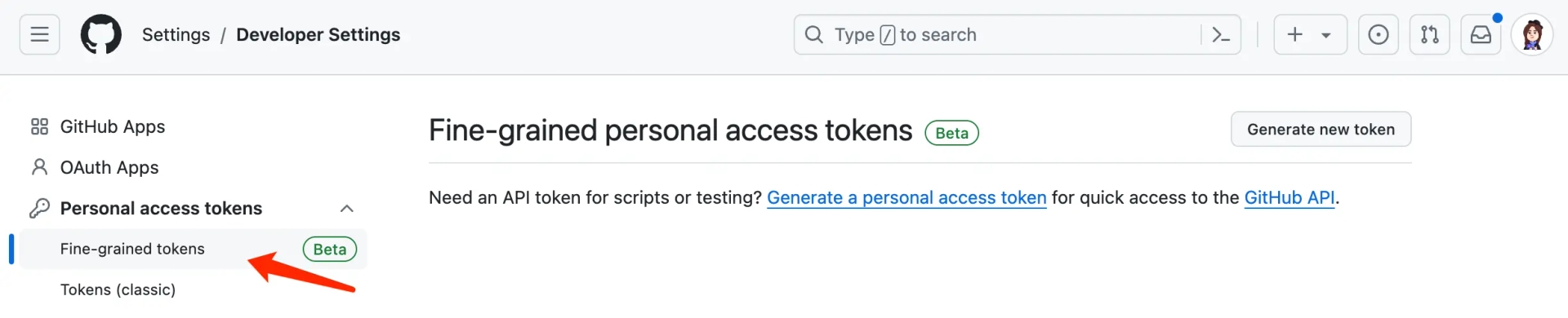

Go to your GitHub account. Click your avatar on the top right, and then click Settings on the dropdown menu.
Click Developer Settings at the bottom of the left sidebar. Click OAuth Apps, and add a New OAuth App.
Fill Application name and then copy the Homepage and Authorization callback URL in Bytebase and fill them. Click Register application.
After the OAuth application is created, click Generate a new client secret.
Go back to Bytebase. Copy the Client ID and the newly generated Client Secret, paste them back into Bytebase's Application ID and Secret.

bb-settings-gitops-step2

Click Next. You will be redirected to the confirmation page. Click Confirm and add, and the Git provider is successfully added.

Step 4 - Enable GitOps Workflow with Spanner

Click Projects on the top bar and click New Project. Name it Demo GitOps and click Create.
Go to the project Demo GitOps and click Transfer in DB. Choose test_db from project Demo UI.

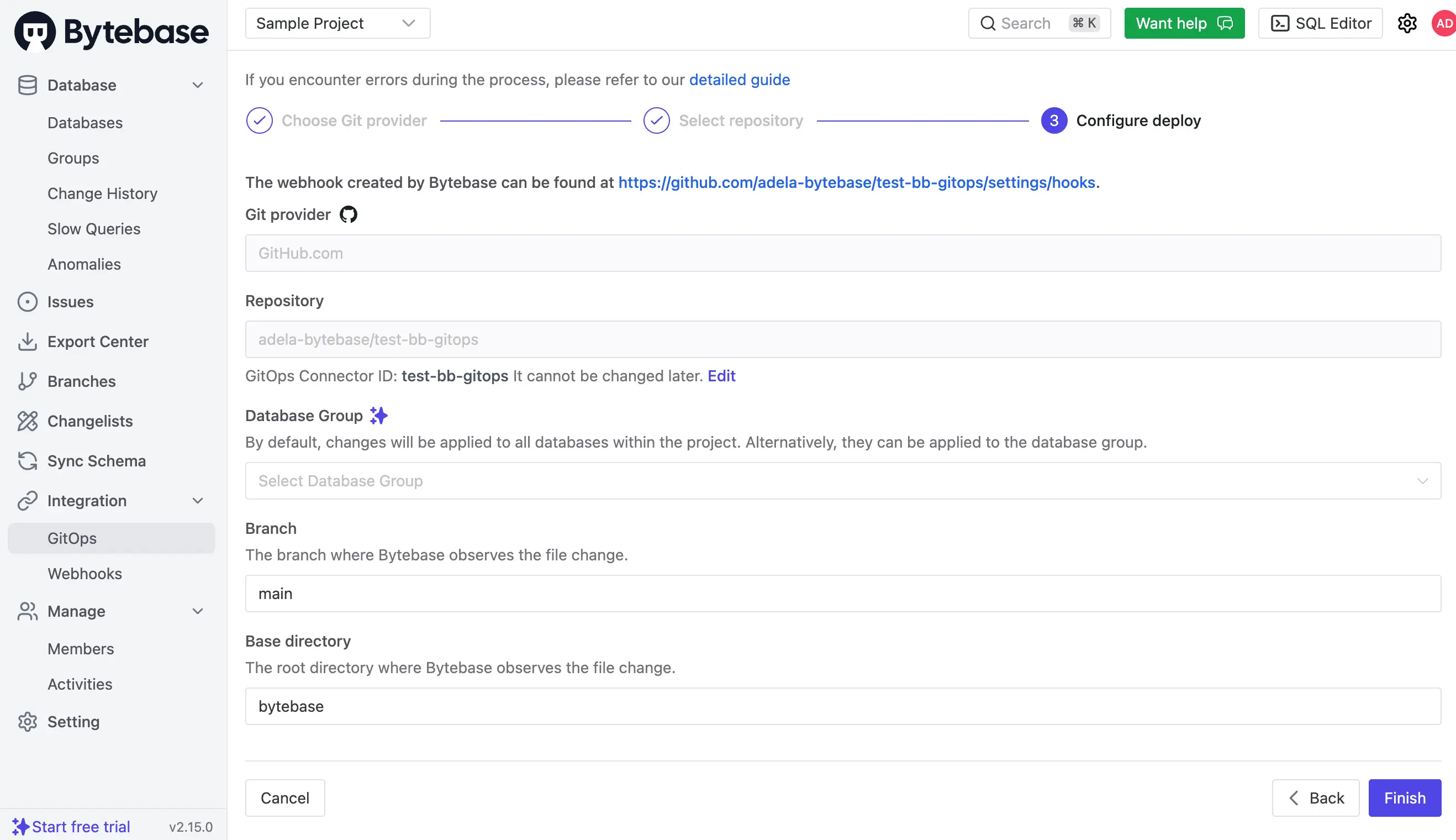

Click GitOps, and choose GitOps Workflow. Click Configure GitOps.

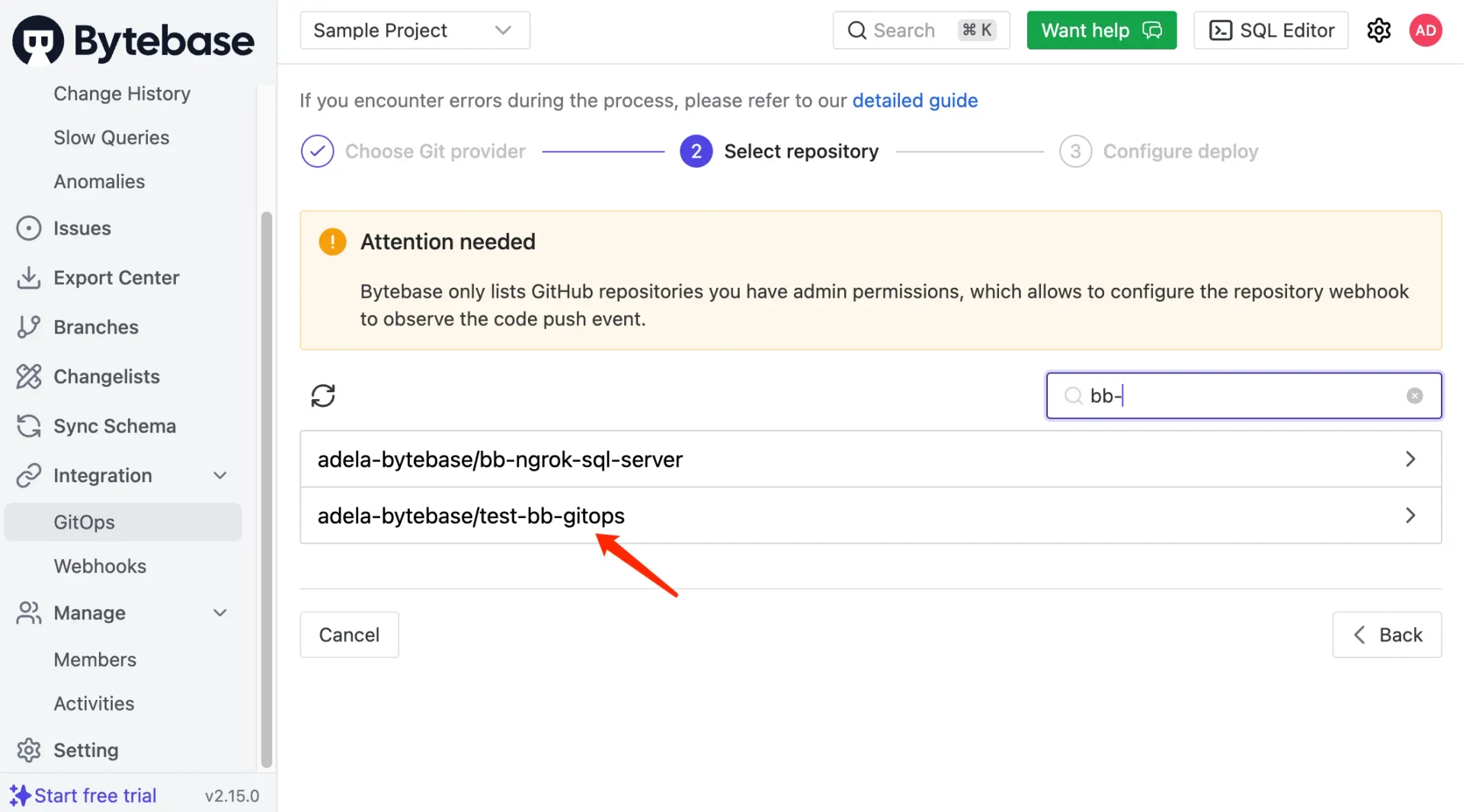

Choose GitHub.com - the provider you just added. It will display all the repositories you can manipulate. Choose bb-test-gitops-spanner.
Keep the default setting, and click Finish.

Step 5 - Change schema for Spanner by pushing SQL schema change files to GitHub

In your GitHub repository bb-test-gitops-spanner, create a folder bytebase, then create a subfolder test, and create a SQL file using the naming convention {{ENV_ID}}/{{DB_NAME}}##{{VERSION}}##{{TYPE}}##{{DESCRIPTION}}.sql. It is the default configuration for the file path template setting under project Demo GitOps > GitOps.

test/test_db##202305090000##dml##add_bella.sql
- test corresponds to {{ENV_ID}}
- test_db corresponds to {{DB_NAME}}
- 202305090000 corresponds to {{VERSION}}
- dml corresponds to {{TYPE}}
- add_bella corresponds to {{DESCRIPTION}}
Paste the sql script in it.
```
CREATE t1 (Id, Name) VALUES (2,'Bella');
```

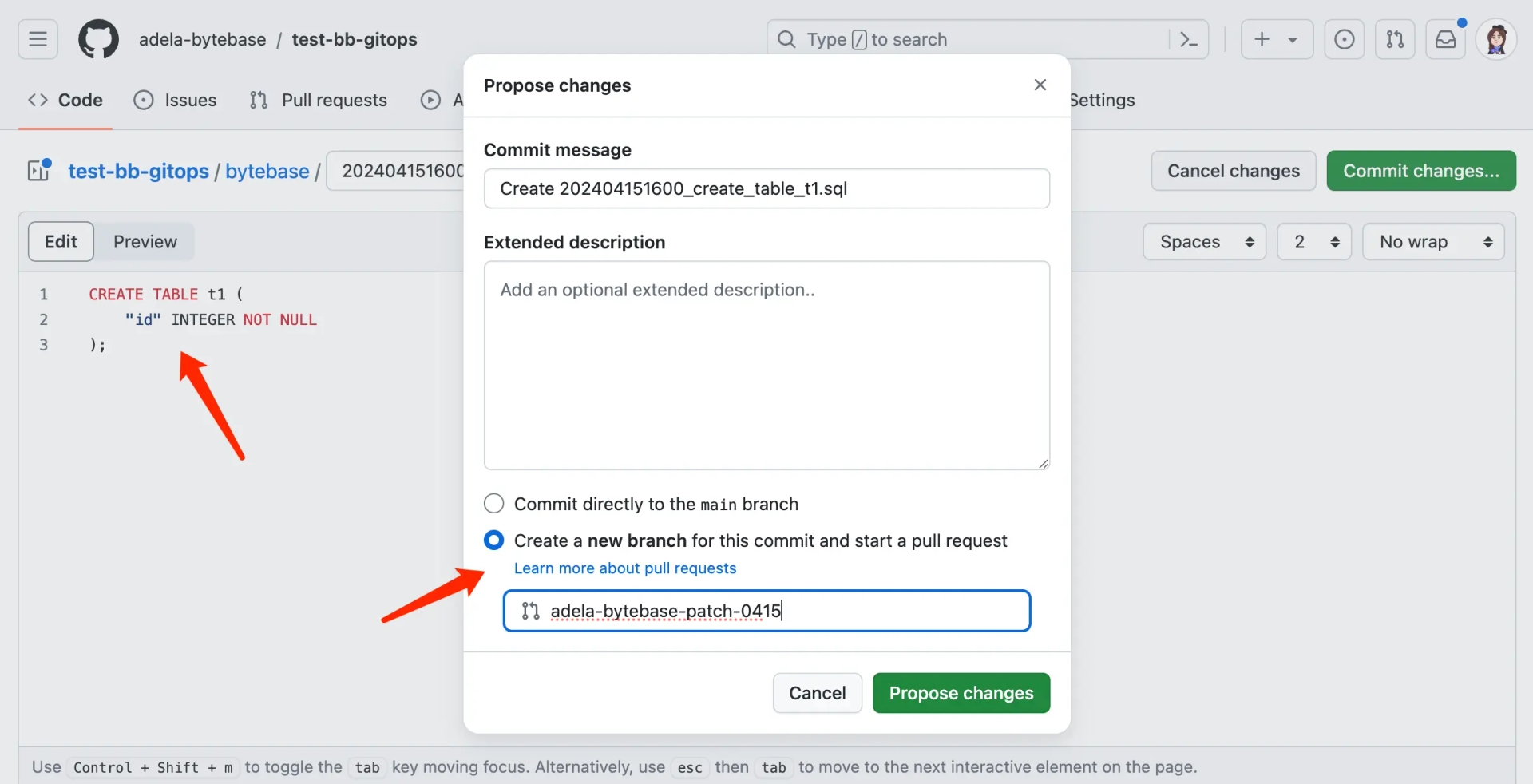

Commit and push this file.
Go to Bytebase, and go into project Demo GitOps. You’ll find there is a new Push Event and a new issue 107 created.

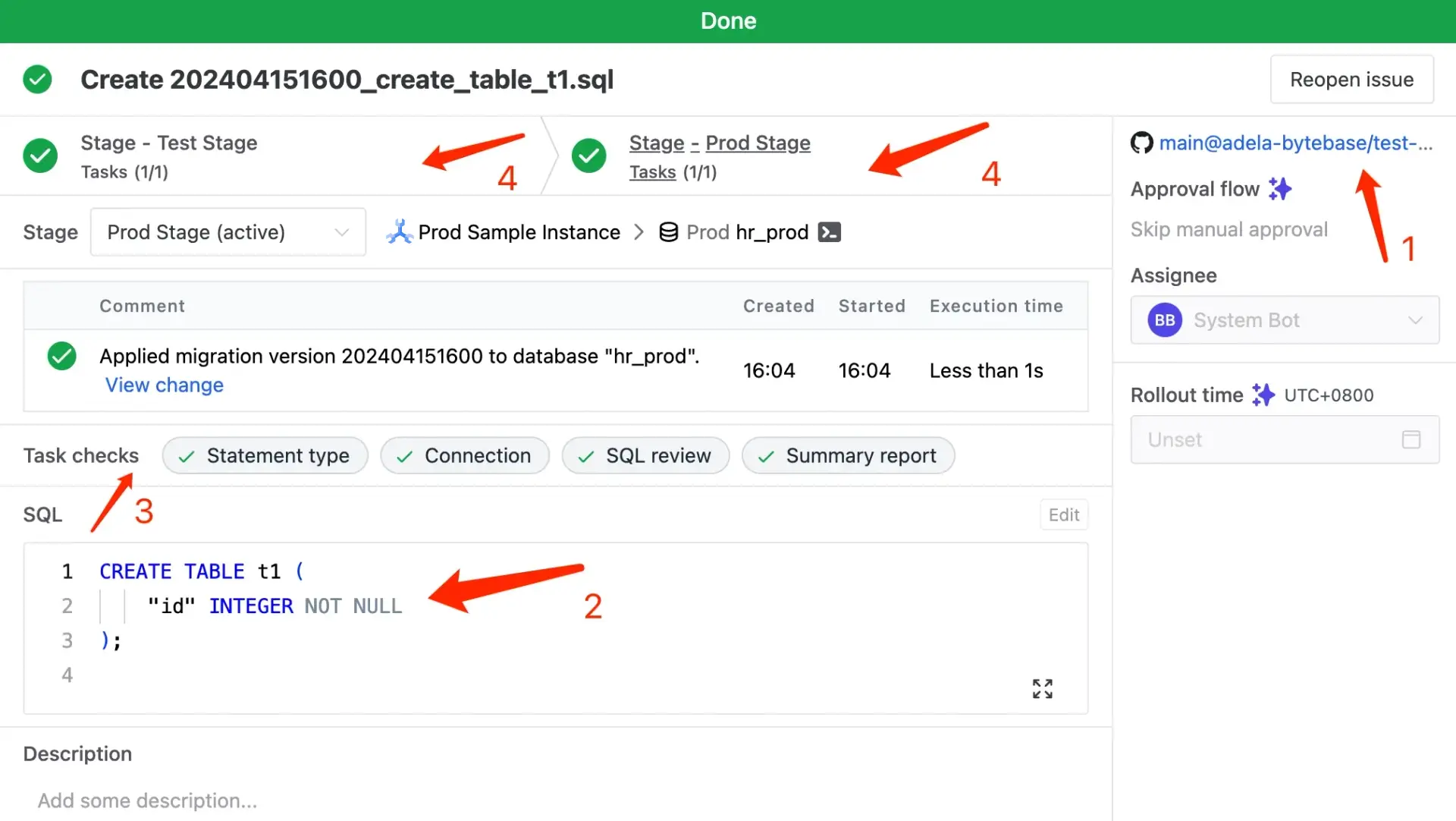

Click issue/107 and go to the issue page. The issue is Done. You’ll see:
- The issue is created via GitHub.com
- The issue is executed without approval because it’s on Test environment where manual approval is skipped by default. The Assignee is Bytebase, because the execution is automatic, and requires no manual approval.
- The SQL is exactly the one we have committed to the GitHub repository.
- The Creator is A, because the GitHub user you use to commit the change has the same email address found in the Bytebase member list.

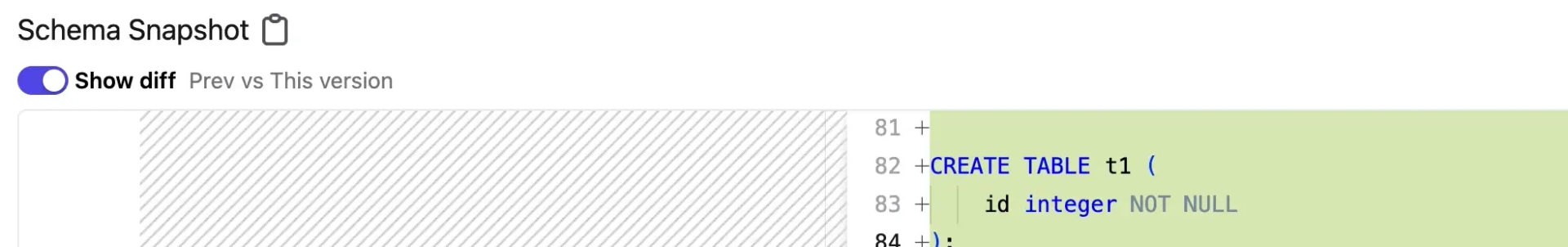

Click View change, you can view the schema diff.

Summary and What's Next

Now that you have tried the GitOps workflow, which stores your Spanner schema in GitHub and triggers the change upon committing change to the repository, to bring your Spanner change workflow to the next level of Database DevOps - Database as Code.

You can check out GitOps docs to learn more configuration details.

In the real world, you might have separated feature and main branches corresponding to your development and production environment, you can check out GitOps with Feature Branch Workflow to learn the setup. Have a try and look forward to your feedback!
