Make a Database Schema Change

Issue represents a specific collaboration activity between developer and DBA such as creating a database, altering a schema. It's similar to the issue concept in other issue management tools.

issue-detail

This document guides you to run a SQL UI Workflow in a project. Make sure you have already created a project with databases and members in it.

Bytebase supports both Edit Schema (DDL) and Change Data (DML). This document takes Edit Schema as an example.

Step 1 - Create an issue

  1. Go to the project page you created, click Edit Schema, and you will see an Edit Schema dialog box.

  2. Choose one or several databases. If you choose one, the Issue will compose them into a Pipeline later; if you choose several, then it's all about that specific database.

    bb-project-edit-schema

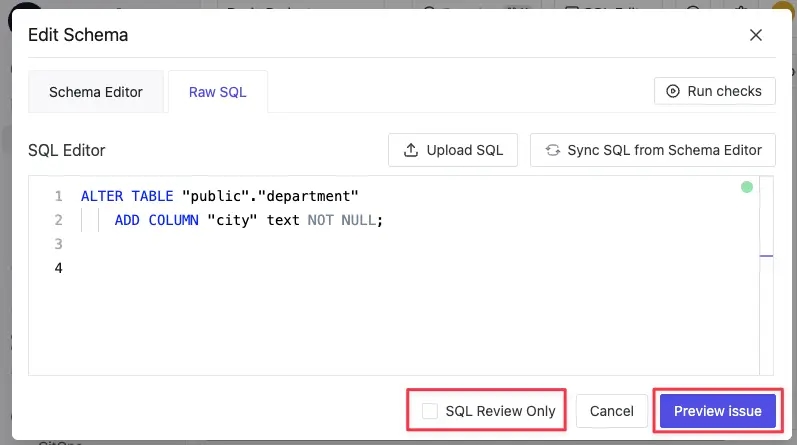

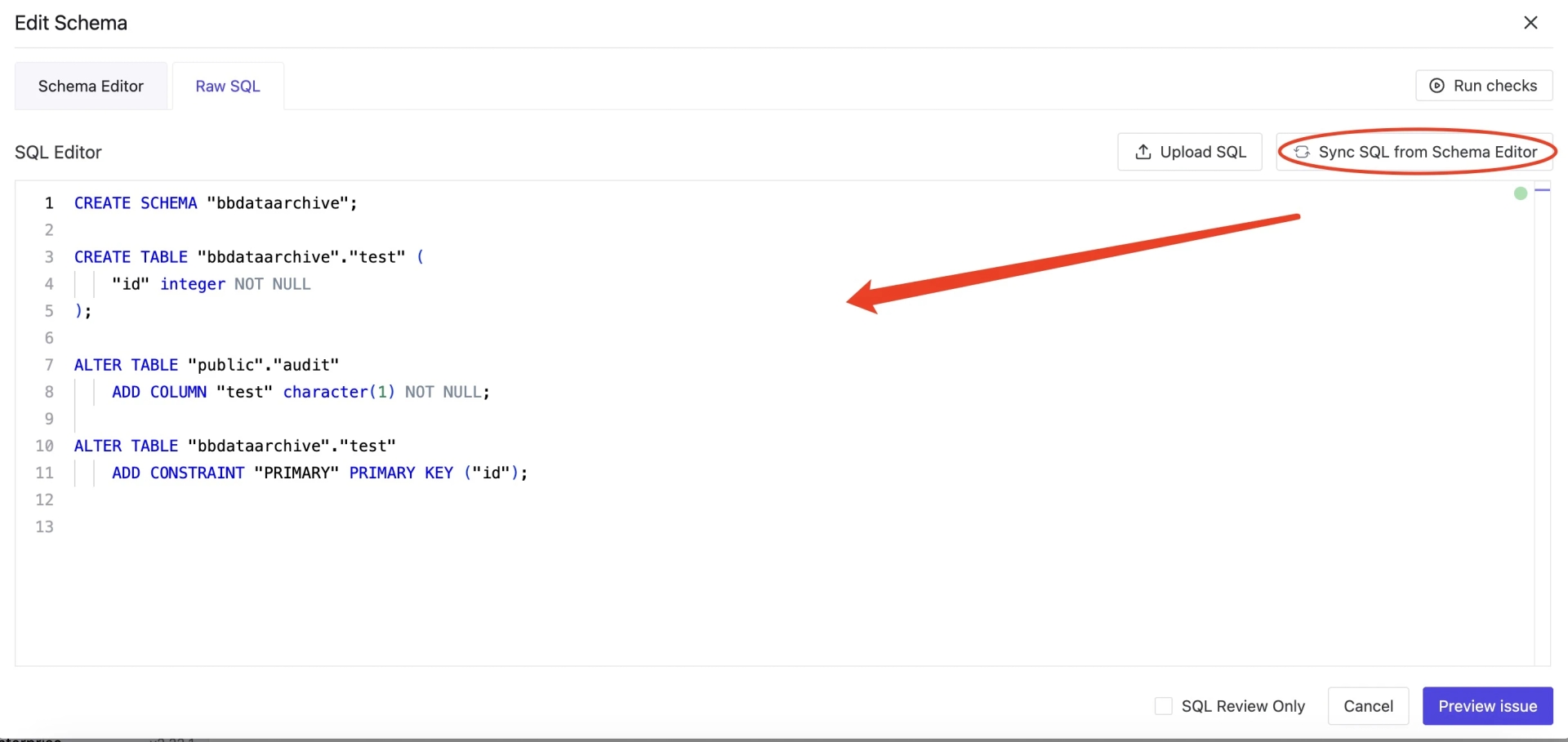

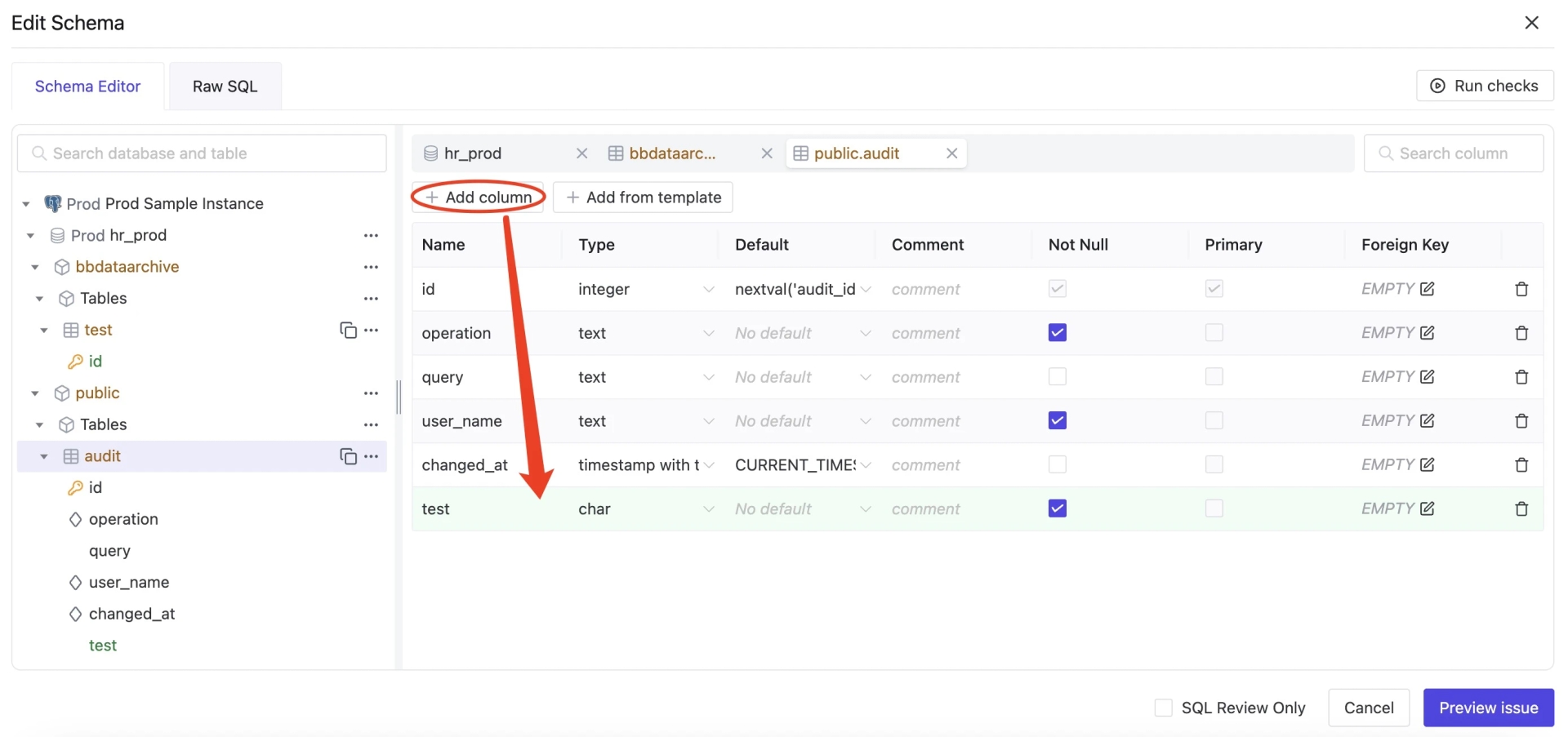

  3. Click Next, you'll be prompted with Schema Editor if it supports the database type. With or without its help, after filling the SQL, you will be redirected to the new issue page.

    bb-schema-editor

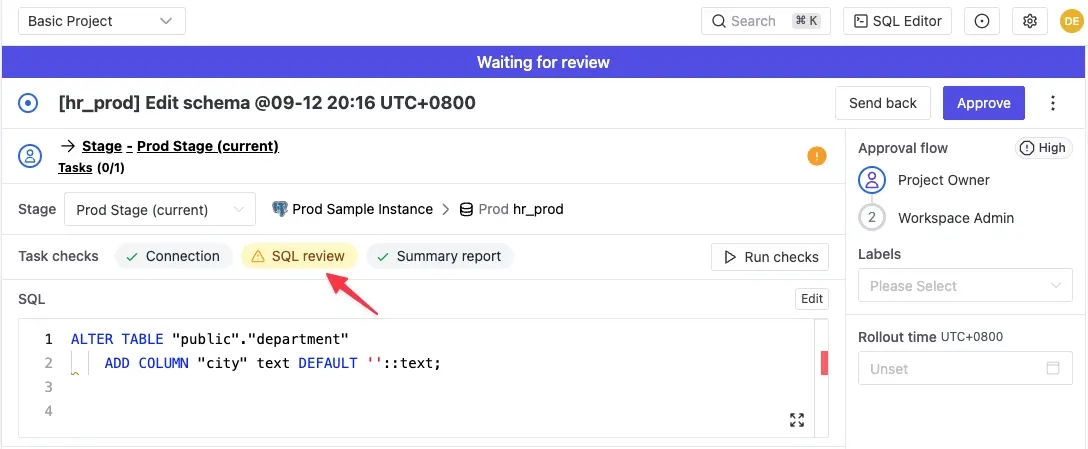

  4. If it's a pipeline, you may need to click Apply to other tasks. Put someone as Assignee to take responsibility, and click Create. Checks will run automatically. If any of the checks fail, you will need to fix the error and click Retry. If all checks pass, you can move on.

    bb-issue-warning

Step 2 - Rollout an issue

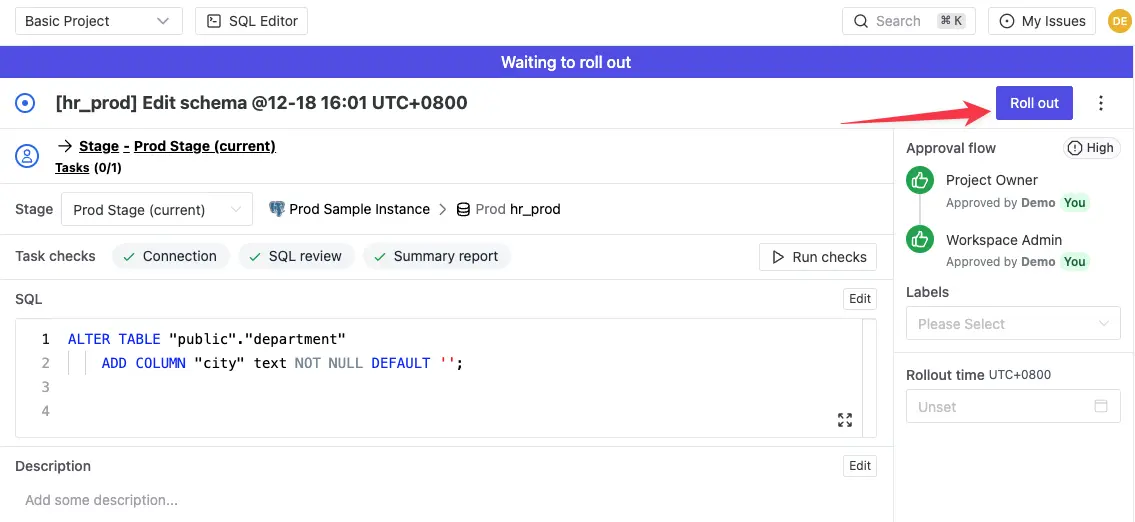

Since there's an SQL review warning, you may fix it by editing the SQL and click Rollout or click Rollout and then check Rollout anyway.

bb-rollout-anyway

After rolling out, the issue is Done.

bb-issue-done

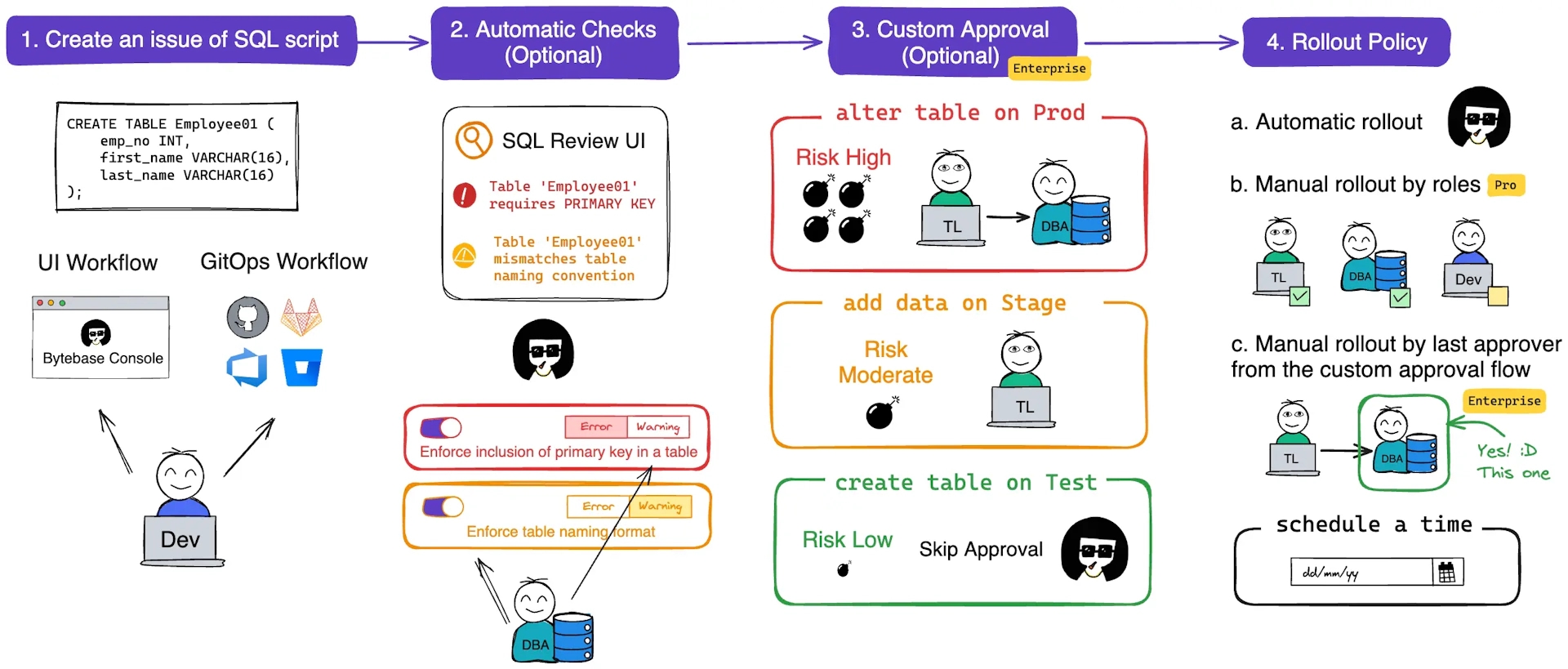

Here's a graph showing the full four steps of issues.

graph-4-steps

Since for now, you haven't configured Custom Approval, the approval process will be skipped. You haven't configured Rollout Policy, unless there is something wrong with the auto checks, the issue will be rolled out automatically.

Summary

Now you have completed the basic UI workflow to change database. There is another more advanced workflow - GitOps workflow. If you want to try Database-as-Code - Run a GitOps Workflow.
